The SISE new water temperature controllers type e.THERM 90°C is equipped with the new shock-resistant 7-inch color touch screen as standard and also very budget-friendly!

The 7-inch color interface is very intuitive and clear.
It is integrated throughout the range and can be easily upgraded with communication packages, for example.
Remote visualization using a VNC connection is available as standard.

All technical components of this new generation are easily accessible and replaceable for easy maintenance.

The storage and graphical display of process data, energy consumption calculation, reinforced instrumentation, and log files allow process traceability and data transfer, among other things, thanks to the open communication protocol OPC-UA. This fits perfectly into SISE’s 4.0 strategy.
———————————————————————

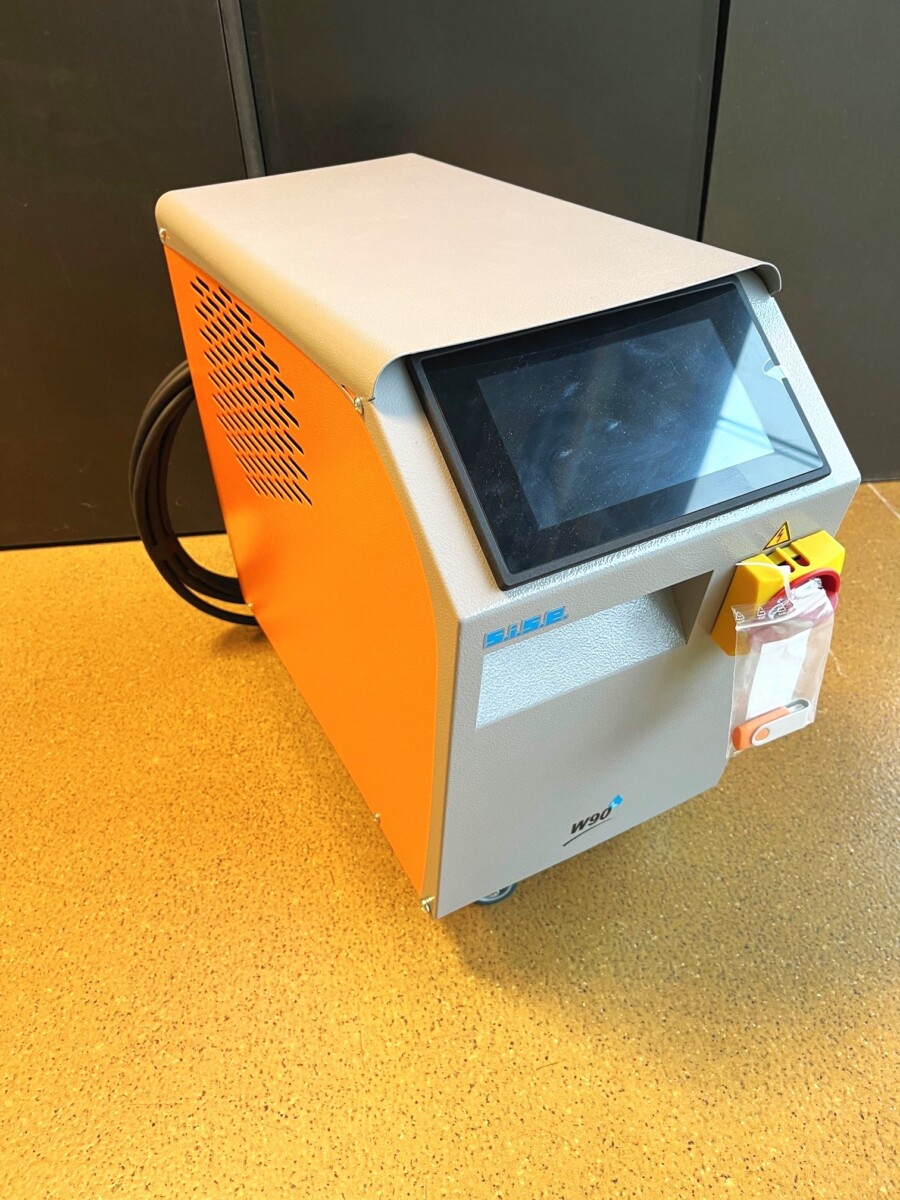

Type e.Therm-W90-S9-P60-C25-T7

• Voltage 400V 3Ph 50Hz
• Heating capacities: 9 kW – Electronic control
• Max. temperature: 90°C
• Turbine submersible pump 60 L/min 3.5 bar max.- Pressure & Suction Mode
• Cooling capacity 25 kW (Water 10°C)
• Pressure and flow display.
• 7″ Color Touchscreen
• Visualization of the HMI on the machine screen by VNC (if available)
• Automatic filling
• Time counter + Programmable clock
• Multilingual interface (5 languages)

Dimensions and weight

• S TYPE =small size
• L542 x B270 x H498 mm
• Weight (empty) 26 kg

—————————————————-
